Overload limiter prevent accidents occurring due to the raised load dangerously exceeding the normal value as established by the manufacturer or by the user of the lifting device. It makes a vital contribution to the safety of operatives.
This limiter model has been designed to prevent overloading when using lifting equipment such as hoists, travelling cranes etc. The limiter is delivered at the desired tare weight in order to facilitate assembly by the technical department.
Sailent features of overload limiter:
- Quick and easy installation.
- Does not require external power.
- Available for all capacity cranes.
- Specialized limiters available for heavy duty application.
- Available preset or easily calibrated on site.
- Automatic reset after reduction of load.
How it works :
These switch needs to be placed in series with upper limit switch. Mechanical over load limiter has high safety, stability, and sensible with large adjustable range suitable for all models and capacity.

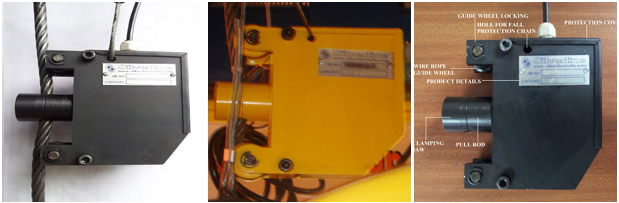

The overload safety switch designed by SILVERLINE can be fitted on the fix end of the wire rope and can be set to cut off at set load. After fixing the limit switch you need to lift the limiting load of known value and set the set screw provided to cut off the upward motion. This switch needs to be placed in series with upper limit switch.
Technical write up for overload safety:
These switch needs to be placed in series with upper limit switch.Mechanical over load limiter has high safety, stability, and sensible with large adjustable range suitable for all models and capacity.
The overload safety switch designed by SILVERLINE can be fitted on the fix end of the wire rope and can be set to cut off at set load.
After fixing the limit switch you need to lift the limiting load of known value and set the set screw provided to cut off the upward motion. This switch needs to be placed in series with upper limit switch.
|
|
|
|
|
