Silverline Festoon System:
We at, Silver line Metal Engineering Private Limited are the well-known pioneers in manufacturing and exporting a wide range of Festoon Systems. These range of products manufactured using high grade raw materials. We manufacture these products known for its sturdy-built and consistent. The price of our products is very cost-effective. All the products are listed under the major categories as follows are Track for Trolley 4500 mm, C-Channel for Support 500 mm, Track Coupler, Track Clamp, Towing Trolley, Towing Arm, Wire Clip Plastic, End Stop, Flat Cable Trolley, Round Cable Trolley, Pendant Trolley, C - Channel Clit and Fixed Trolley.
- Round cable trolley
- Fixed trolley
- Towing trolley
Track
 |
C-Channel
 |
| Product No |
Length |
Thickness |
Material |
| CRT-01 |
4500 |
1.5 |
G.P |
|
| Product No |
Length |
Thickness |
Material |
CRT-02
|
500 |
2.8 |
C.R.C.A |
|
|
Track Coupler
 |
Track Clamp
 |
| Product No |
Thickness |
Material |
| CRT-03 |
2 |
C.R.C.A |
|
| Product No |
Thickness |
Material |
| CRT-04 |
4 |
C.R.C.A |
|
Towing Trolley
 |
End Cap
 |
| Product No |
Thickness |
Material |
| CRT-05 |
4 |
C.R.C.A |
|
| Product No |
Thickness |
Material |
| CRT-08 |
3 |
C.R.C.A |
|
Flat Cable Trolley
 |
Pendant Cable Trolley
 |
| Product No |
Thickness |
Material |
| CRT-10 |
2.8 |
C.R.C.A |
|
| Product No |
Thickness |
Material |
| CRT-12 |
5 |
C.R.C.A |
|
| |
|
|
|

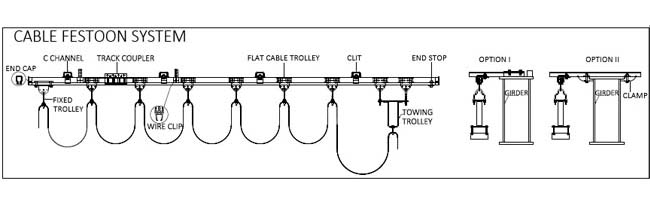

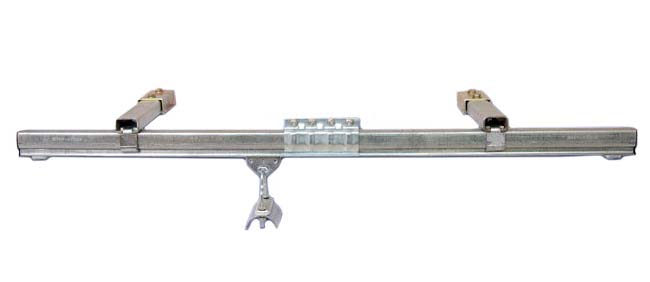

Festoon System Assembly : Wire Clip :
C Track Festoon System:
C track is a prominent festoon system which is used to provide power to a bridge crane, runaway or lower power voltage to a disconnected pendant station circuit. The festoon cable used in C track is usually flat but sometimes round ones are also used. Round cables do not accumulate on the festoon system and are hence preferred over the flat ones.
The ones manufactured by Silverline Metal Engineering Pvt. Ltd. are of high quality and exported at lowest price. It comes with junction box, track joint assembly, clamps, end cap, tow bar, strain relief cable, cross arm support bracket, cable connector, saddle assembly and pendant push button station.
We are glad to introduce ourselves as one of the prominent manufacturers, Exporters and wholesalers Meetrel Rail Festoon System .
| Fixed Trollley |
Flat Cable Trolley |
Pendant Trolley |
 |
 |
 |
| Towing Trolley |
Track Clamp with Bolt |
Track Clamp with Plate |
 |
 |
 |
| Track Coupler |
|
 |
|
Features of C Track festoon system:
Anti corrosive.
Strong.
Durable.
Available in various lengths
Less friction
Less weight of trolley
Light weighted
Longer cable life enhances because no useless twist turns are offered.
Applications of of C Track Festoon System:
- Electrify several types of mobile equipment
- Port cranes
- Refuse cranes
- Overhead cranes
- Electrification of moving machineries
- Other material handling applications
I Beam Trolley:
We are manufacturer and exporters a wide range of cable trolley. All the products listed under this category are 4 wheel–beam cable trolley 50 mm (deluxe) suitable for 15 MB 100. It may be of hot dipped of galvanized steel and higher loads with 4 point suspection.
| Round Trolley |
Fixed Trolley |
Cotmac |
 |
 |
 |
| Towing Trolley |
Heavy Duty Trolley |
I Beam Cable |
 |
 |
 |
| Single Decker Trolley |
Double Decker Trolley |
 |
 |
Main application:
Transport system
Electricity air supplier for machinery
Used in conveyor system
Standard cranes
TECHINAL SPECIFICATION:
Carrier length-125 or160(mm)
Diameter of cable support-50,63 or80
Trolley body-powder covered GI
HEAVY DUTY I BEAM TROLLEY:
Heavy duty cable trolleys are the fast choice which demands high speed container cranes,steelworks,rolling mills,large bridge and Offshore said system.it is easy to install on site as well as access For the replacement of individual or multiple cable.
We hold expertise in supplying extensive array of cable trolley in I-Beam type. Its robust construction, low maintenance, easy installation, anti-corrosive and cost-effective prices, these are widely used in all across the world. All these are manufactured under the supervision of experts that ensure its long functioning life. Hence, we are glad to introduce ourselves as one of the trustworthy Manufacturer, Exporters and Wholesale I-Beam Cable Trolley from Maharashtra, India.
Main application:
Transport system
Electricity air supplier for machinery.
Used in conveyor system
Standard cranes
Techinal Specification:
Carrier length-125 or160(mm)
Diameter of cable support-50,63 or 80
Trolley body-powder covered GI
Features of I-Beam Cable Trolley:
Durable
Easy to handle
Excellent performance
Long functioning life
Anti-corrosive
Applications of I-Beam Cable Trolley:
EOT Cranes
Other material handling equipment
1. Mega Trolley:
Silverline Metal Engineering Pvt. Ltd. is a leading organization that is engaged in manufacturing and supplyingMega Trolley for cranes. It is crane component that plays important role while functioning of cranes. It is extremely highlighted due to its excellent performance, robust construction, rich quality, smooth finish, and wide applications.
Our company is supported with advanced tools and machinery that has helped us in manufacturing optimum quality components for clients. We check these products on several parameters to guarantee its quality and long functioning life. Hence, we feel proud to lead ourselves as one amidst top-notch Manufacturers, Exporters and Wholesale Mega Trolley Suppliers from Maharashtra, India.
Features of Mega Trolley:
Optimum quality
Corrosion resistant
Easy installation
Long functioning life
Compact designs
Applications of Mega Trolley:
JIB cranes
EOT cranes
Other material handling equipment
2. Trolley buffers:
We hold the expertise in manufacturing and exporting Buffers for Trolleys & Crane around the globe. Our products are manufactured using first-grade steel and raw metals purchased from trust-worthy vendors. The entire products of us are featured with a sturdy structure, paramount durability and strong central axis bar. These are mostly preferred in all industrial places, automobiles and lathes.

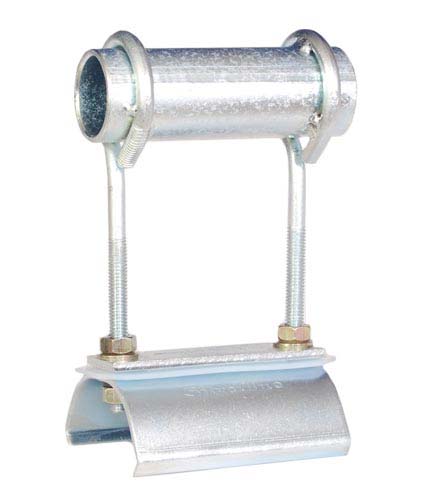

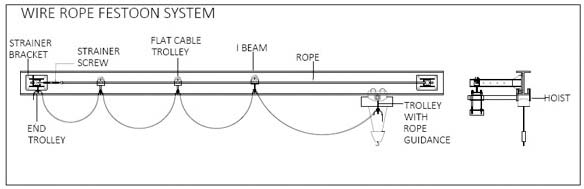

Wire Rope Festoon System:
Features like long lasting, light weight, low maintenance leading to excellent performance mark the world class Wire Rope Festoon System manufactured by Silverline Metal Engineering Pvt. Ltd.
We use state of the art technology and high grade raw material to manufacture the wire rope festoon system which is used for overhead cranes, refuse cranes, electrification of mobile equipment. Our products are offered at the lowest rate and delivered on time.
This is a very easy and most economical festoon system used for supplying power for long travel motion along a shed length.

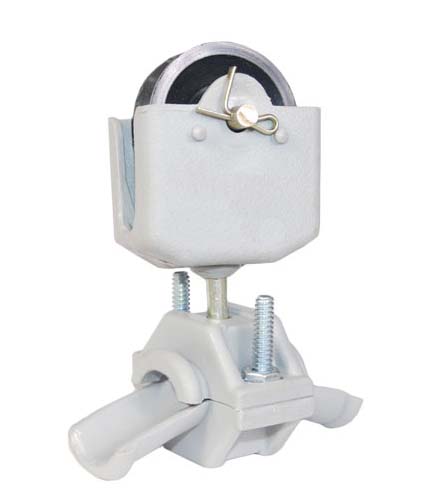

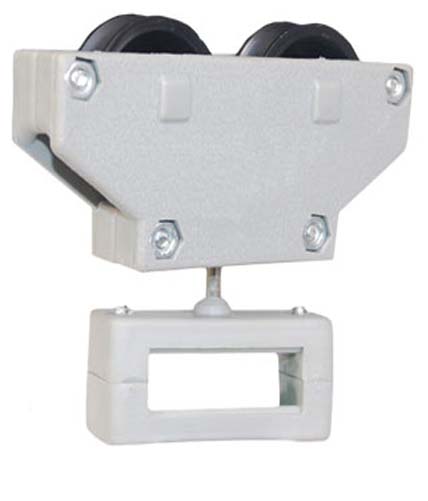

| Wire Rope Trolley |
Wire Rope Trolley |
Wire Rope Trolley |
 |
 |
 |
Features:
-Light weight
-Less friction
-Smooth motion
-Longer cable life.
-Quick and easy installation.
Application of Wire Roop Festoon System:
-Over head cranes
-Port cranesMaterial handling application.
-Other industrial application. |
|
|
|
|
